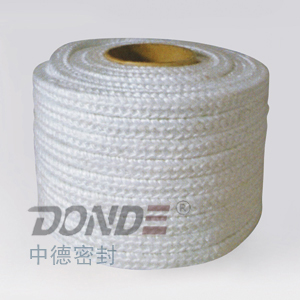

Glass Fibre Braided Packing

Item No.:ZD-P1710

Description:Glass fibre packing is braided with high quality E-glass fiber without ant impregnant.It is braided without any flammability component.Usually,it's staticc sealing packing.Glass fibre packing has many excellent capabilities of high strength and high temperature resistance, low density and low thermal conductivity,better insulation and incombustible etc.







Main Specification:

Temperature

-40℃~+680℃

Pressure

10MPa

PPH Range

2-12

Linear Speed

12M/S

Size

3*3mm-80*80mm(or as request)










Glass Fibre Packing Impregnated PTFE ZD-P1712:

Glass fiber can also be impregnated with PTFE.Glass fibre packing with PTFE is largely prevents solids from entering the seal and maintains its elasticity. Glass fibre packing with PTFE is suitable for pump and valves.









Main Specification:

Temperature

<280℃

Pressure

2-20MPa

PH Range)

0-14

Linear Speed)

2-8M/S

Size

3*3mm-80*80mm(or as request)


How to Order:

Item

Order Code

Glass Fibre Braided Packing

ZD-P1710

Graphited Glass Fibre Packing

ZD-P1711

Glass Fibre Packing Impregnated PTFE

ZD-P1712

For more information,please contact with us directly,thanks!
