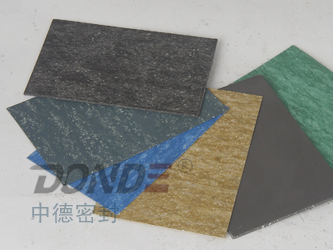

Reinforced(Tanged) Asbestos Composite Sheet

Item No.:ZD-GS1320

Description:Reinforced asbestos sheet is made of two layers asbestos fiber paper with 0.20-0.25mm tinplate tanged together or other metal foil.It is extensively applied in manufacturing various gaskets of motor,water pump and air condition.the product has excellent performance in dilatability,sealing quality and long life etc.

The Component:It is formed with materials of three cascades. At middle of the composite plate is a stainless steel plate and on both out-sides non-asbestos beater sheet. It is produced by specially pressing and sticking process.

Available with SS304. wire mesh insertion

Also available with anti-stick silicon resin or graphite coated.

Advantage of Reinforced(Tanged) Asbestos Composite Sheet:With excellent comprehensive properties it overcomes the disadvantage of being squeezed out from and/ or  sticking into flanges. This kind of sheet is be seized of the characteristics such as good compressibility and resilience, small  stress relaxation, fine compensation function for uneveness of sealing surfaces and long working life.Permanently elastic, even in hot-cold cycles over the entire temperature range, noaging, no brittleness, no hot or cold flow, long time uniform compressibility and resiliency independent of temperature.
Application
:It is the best material of cylinder head gasket. It is used for machinery of equipment such as automobile engine, motorcycle engine, diesel internal combustion engine etc.Mainly used in automobile farming machinery,motocycle,engineering,water pump and air condition etc,it is also can be used in high strength gaskets and cylinder head gaskets etc.

Media:  steam, mineral oil, heat transfer oil, hydraulic oil, fuel, water, seawater, freshwater.

Main Specification:

Tensile strength(Mpa)

12.7

Compressibility(%)

40

Recovery(%)

20

Density(g/cm3)

1.6-2.0

Loss on ignition

24%(850℃,1h)

Color

Grey,Black,White

Common Size(mm)

Width:1500,1350; Length:1000,1350mm,2000,4000;

Thickness:0.5-5
