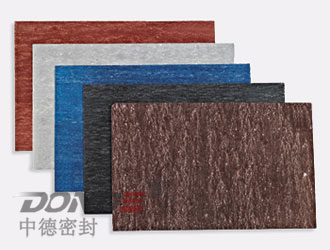

Asbestos Rubber Sheet/Oil-proof Asbestos Sheet

Item No.:ZD-GS1300/ZD-GS1310

Description:Asbestos rubber sheet (asbestos joint sheet) is made of excellent asbestos, rubber and other chemical materials.It is formed by rolling after special mix-ture treatment .The thickness of asbestos rubber sheet not larger than 0.5 to 5.0mm can be supplied.It is mainly for such media as water and vapor.It is applicable to sealing and heat-insulation.Asbestos rubber sheet is also used in the industries as machinery, automobiles, farm, machinery and petroleum.Asbestos rubber sheet can be reinforced with tin steel, copper, SS304 etc. wire mesh insertion.

Main Specification:

Item

asbestos sheet common

asbestos sheet oil-proof

Tensile strength(Mpa)

19

2.10~2.30

Compressibility(%)

12±5

112±5

Recovery(%)

45

50

Density(g/cm3)

1.6-2.0

1.6-2.0

Maximum Service Temperature(℃)

450

400

Maximum Service Pressure(Mpa)

6.0

4.0

Common Size(mm)

Width:1500,1350; Length:1000,1350mm,2000,4000; Thickness:0.5-5

Grade of Asbestos Sheet:

Appellation

Capability

purpose

XB450
ZD-GS1300

High Pressure

Suitable for equipment mainly with mediums of water , vapor, air, gas, alkali, ammonia, alcohol and inertia. Temperature under 450°C, Working pressure under 6.0Mpa of pressure,  Tensile strength crosswise>=19.0MPa, compressibility: 7% ~17%, Aging coefficient>=0.9, rebound degree>=45%, stress relaxation<=50%.

XB350
ZD-GS1301

Middle Pressure

Suitable for mediums of water, saturated vapor, air,  ammonia, alkali under 350°C,4.0Mpa of working pressure. Tensile strength crosswise>=12.0MPa, compressibility: 7% ~17%, Aging coefficient>=0.9, rebound degree>=40%, stress relaxation<=50%.

XB200
ZD-GS1302

Low Pressure

Suitable for mediums of water, saturated vapor, air,  under 200°C,1.5Mpa of working pressure, for steam sealing, the working temperature is 2MPa to 3MPa.   Tensile strength crosswise>=6MPa, compressibility: 7% ~17%, Aging coefficient>=0.9, rebound degree>=35%, stress relaxation<=50%.

NY150 (ZD-GS1310) Oil Resistance
Suitable for kerosene, petro-chemical, used as joint material in the hot oil medium.Tensile Strength Crosswise>=9.0MPa, Compressibility: 7%-17%.3# OIL FOR 5 HOURS: Tensile Strength Crosswise>=6.0MPa, oil absorption<=22%.

NY250 (ZD-GS1310) Oil Resistance
Max temperature: 250°C, Max Working pressure: 1.60MPa. Suitable for sealing material as oil refine equipment, distillation pipeline flanges, sealing joints of automobile, diesel engine and oil transportation pipeline. Tensile Strength Crosswise>=11.0MPa, Compressibility: 7%-17%.3# OIL FOR 5 HOURS: Tensile Strength Crosswise>=7.0MPa, oil absorption<=22%, thickness increase <=25%
NY300 (ZD-GS1311) Oil Resistance
Max temperature: 150°C. Suitalbe for sealing joints material of aviation engine kerosene, lubricating oil, fuel and air conditioning(cooling) system. A. Immersion in 20# aviation lub oil for 5hours. Tensile Strength Crosswise>=10.80, oil absorption<=23%, thickness increased<=15%. B. Immersion in 75# oil or 3# for 5 hours: Tensile Strength Crosswise>=7.90, oil absorption<=22%, thickness increased<=25%
NY400 (ZD-GS1312) Oil Resistance
Max temperature: 400°C, Working Pressure<=4MPa, Compressibility 7%-17%. , Stress Relaxation <=45%, Suitable as middle pressure sealing material of hot oil, petroleum distillation, kerosene distillation and petroleum cracking equipment. Also, they are usually used in the large aviation engine and rocket. A. Immersion in 20# aviation lub oil for 5hours. Tensile Strength Crosswise>=26.0, oil absorption<=9%, thickness increased<=15%. B. Immersion in 75# oil or 3# for 5 hours: Tensile Strength Crosswise>=14.7, oil absorption<=15%, thickness increased<=20%
