  Synthetic Fibre/Mineral Fibre Packing
  Acrylic Fibre Braided Packing                                                                 Novoloid Fiber Braided Packing
  PAN Fiber Packing                                                                                    Asbestos Fibre Braided Packing
  Glass Fibre Braided Packing                                                                 Ceramic Fibre Braided Packing

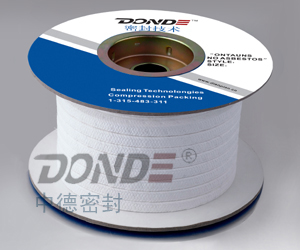

Acrylic Fibre Braided Packing

Item No.:ZD-P1500

Description:Acrylic fibre braided packing is made from acrylic fiber. And acrylic fibre packing is impregnated with PTFE dispersion and siliconfree lubricants.It is a flexible ,resilient,homogeneous and compact packing.The acrylic fibre packing can be widely utilized in general applications on rotary or alternative shafts.For example,acrylic fibre packing can be used in paper mills, foodstuffs,pharmaceutical industries,ect.

Main Specification :

Temperature

-100℃~+250℃

Pressure

5-20MPa

PH Range

2-12

Linear Speed

0-12M/S

Size

3*3mm-60*60mm(or as request)

For more information,please contact with us directly,thanks!

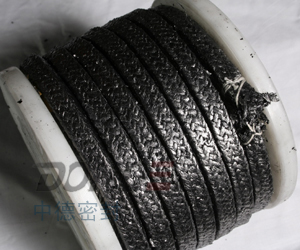

Arcylic Fiber Packing Treated with Graphite

Item No.:ZD-P1501

Description:Arcylic Fiber Packing Treated with Graphite is braided of high strength Arcylic synthetic fiber, treated with graphite and special lubrication.Much of graphite filler increases the service temperature and the density of the packing.

APPLICATION:Universal packing for pumps and valves, and handle water, air, steam, mild acids and alkalis, all kinds of organic solvents and Chemicals. Especially suitable for the condition of high-temperature,high-pressure, medium speed.

Main Specification :

Temperature

350℃

Pressure

2.5-15MPa

PH Range

1-13

Linear Speed

15M/S

Density

1.3g/cm3

Size

3*3mm-60*60mm(or as request)

For more information,please contact with us directly,thanks!
