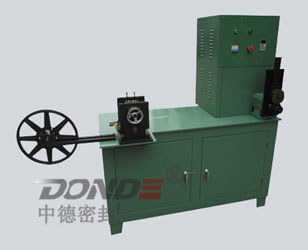

Metal
Tape Shaper
Item No.:ZD-M60
Description:ZD-M60
Metal strip
shaping
machine
is
semi-automatic, flat
strip is shaped
to V or W profile by pressing roller which is
controlled by
variable
frequency motor,
it will stop automatically
when shaping finish, so one worker can operate several
machines.
production
capacity: 400kg per day based on 4.5mm width strip
Configuration:
1.one
set of shaping molds.
2.strip size available:
2.5mm,3.2mm,4.5mm,6.4mm,7.2mm in V or W-shaped.
Technical Parameter:
|
Strip Thickness |
0.1 - 0.3mm |
|
Strip Width |
2.5,3.2,4.5,6.4,7.2 |
|
Linear Speed |
0
–
12m/s |
|
Total Power |
1.5 KW |
|
Motor Power |
0.75 KW |
|
Voltage |
380V/220V |
|
Variable Frequency Controller |
2.2G |
|
Dimension |
1800*820*1600mm |
|
Weight |
300 KG |
