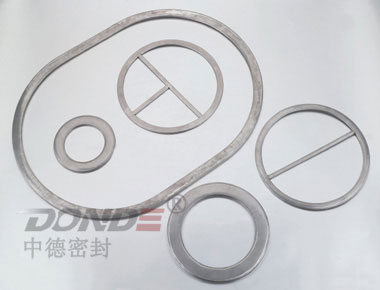

Metal Jacketed Gasket(Double Jacketed Gasket)

Item No.:ZD-G2020

Description:Metal jacketed gaskets comprise of a thin metallic outer shell enclosing a resilient filler material. The gaskets metal case protects the resilient filler and is resistant to pressure, temperature and corrosion.Metal jacketed gaskets are hand made and are available in many shapes and sizes with a selection of metals and fillers available. Internal ribs of any configuration are available.These gaskets are widely used in heat exchanger applications but require good and even flange surfaces along with high bolt loads to effect a seal.

Single jacketed gaskets have one surface and both OD and ID covered by the metal jacket. Suitable for narrow flange widths in low pressure valve / pump applications

Double jacketed gaskets are completely enclosed by a two piece metal jacket covering OD, ID and both sealing surfaces. Widely used in heat exchanger applications and suitable for corrosive and high temperature service.

Internal ribs (pass partition bars) can be integral or welded welded as in both types, the primary seal is safely maintained.

Application: those with simple shapes are applied in pipeline flange and sealing surface of internal-combustion machines, and those with complicated shapes are used in the flange cover of heat exchanger, etc. The general gaskets are 10-25 MM wide and 2MM-8MM thick, and can be used in a maximum work pressure of 6-10Mpa.

Definition: the cladding materials are different metal panels of 0.1MM－0.5MM thick, and the internal cladding materials are made of non-metal materials.

Filler Material: Normally graphite,PTFE, ceramic and non asbestos are also available.

Jacketed Material：Tin-plate、SS304、316、Copper、aluminum,ect.

Types:

Types of sealing gasket	Applied in
Metal fully-cladding gasket	Vacuum sealing position, tower groove flange, valve cover, etc, automobile dynamo
wave-shaped fully-cladding gasket	High-temperature pipeline, valve, exhaust pipelines, etc.
wave-shaped semi-cladding gasket	Ignition tower flange, manhole, hand hole, pipeline flange, etc
Round fully-cladding gasket	Manhole, hand hole, internal-combustion engine, etc.
Metal double-layer fully-cladding gasket	High-temperature and high-pressure flange, container flange
Metal U-shaped cladding gasket	Pipeline flange, valve etc
Metal cone-shaped cladding gasket	Cone parts of air blower

Choosing metal sheet:

materials	maximum temperature (℃)	remarks
blue asbestos plate	350	With over 90% asbestos fiber (blue asbestos)
asbestos plate (thread, rope, cloth)	500	With over 90% asbestos fiber (chrysotile asbestos)
asbestos rubber plate	450	High-temperature asbestos rubber plate
expansion graphite	500( oxygen environment )	Non-oxygen environment of over800℃
porcelain fiber plate	1750	---
PTFE plate	260	---

Wave-shaped fully-cladding gasket: (mm)

Characteristics: good elasticity, applicable to the sealing positions of low preloaded force, and mainly used in the valves, pressure containers, and tower apparatus, etc of petroleum refining and chemistry devices.

gasket width （W） outer diameter range（D）  gradient range（P）  thickness（T） Below 100 3 3 3 --   100￣160 3 4.5 4.5 4.5 3 160￣250 4.5 4.5 4.5 6.5 3 250￣400 4.5 4.5 4.5 6.5 3 400—630 4.5 6.5 6.5 6.5 3 630—1000 4.5 6.5 6.5 6.5 3 1000--1600 -- 6.5 6.5 6.5 3 Pressure （y,Mpa）gasket coeficient table (m) of wave-shaped gasket of different kinds 　 types  metal types  gasket coefficient (m)  pressure （y）Mpa Metal wave-shaped and asbestos line gasket  aluminum alloy 2.5 20 copper and brass copper 2.8 30 soft steel 3.0 35 Monel alloy 3.3 40 Nickel alloy 3.3 40 Stainless steel 3.5 50 Metal fully-cladding sealing gasket aluminum 2.5 20 Red copper, brass copper 2.8 30 soft steel 3.0 35 5Cr--1/2Mo steel 3.3 40  stainless steel 3.5 50 Metal U-shaped cladding gasket (wave-shaped cladding) (full cladding) (semi-cladding)  aluminum 3.3 40 Red copper, brass copper 3.5 50  soft steel 2.8 55 5Cr--1/2Mo steel 3.8 65 stainless steel 3.8 65 Monel alloy 3.5 60 Metal round cladding sealing gasket  aluminum 3.3 40 Red copper, brass copper 3.5 45  soft steel 3.8 55 5Cr--1/2Mo steel 3.8 65  stainless steel 3.8 65 Monel alloy 3.5 60 Metal double-layer cladding sealing gasket aluminum 4.3 50 Red copper, brass copper 4.5 55  soft steel 4.8 65 5Cr--1/2Mo steel 4.8 80 stainless steel 4.8 80 Monel alloy 4.5 70

Install of ZD-G2020:



Main Style Of Metal Jacketed Gasket：

Main Specification of Metal Jacketed Gasket：

　

Warning: Gasket materials should never be recommended when both the temperature and the pressure are at the maximums listed.  Properties and applications shown are typical.  No application should be undertaken by anyone without independent study and evaluation for suitability. Never use more than one gasket in one flange joint, and never reuse a gasket.  Improper use or gasket selection could cause property damage and/or serious personal injury.  The data reported is a compilation of field testing, field service reports and/or in-house testing.  While the utmost care has gone into publishing the information contained herein, we assume no responsibility for errors.  The information and specifications  contained in this website are subject to change without notice. This revision cancels and obsoletes all previous editions.
