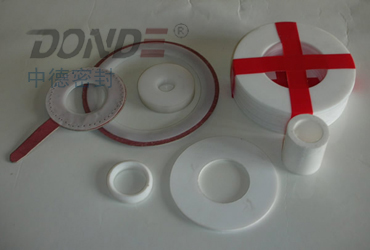

Pure PTFE Gasket，Polytetrafluoroethylene Gasket

Item No.:ZD-G1600

Description: ZD-G1600 is made by cutting PTFE stick, pipe and sheet into flat shape PTFE gasket, v shape PTFE gasket or valve annulus PTFE gasket.PTFE gasket has 100% PTFE structure.It can bear the most bitter chemical medium, and PTFE gasket has good anti-creeping performance.PTFE gasket is a replacement of asbestos,and it is anti-creeping, anti-cold-flow, anti-low-temerature.PTFE gasket has no pollution and is easy to install and replace. under small pre-stress force,it can bear great internal pressure even in a environment of changing pressure. It is the best suit the condition with rough and fragile flange and alternately-changing temperature.

Main Specification：

---

Modified PTFE Gasket

Item No.:ZD-G1610

Description:As we know,PTFE gasket is anti-creeping, anti-cold-flow, anti-low-temerature and PTFE gasket has no pollution. If we add some more useful element into the PTFE,the compression resistance and high temperature resistance will be more perfect.For example,can add some fibreglass,graphite,bronze to improve the character of pure PTFE gasket.We have PTFE gasket reinforced with glass fibre,graphite PTFE gasket,reformative PTFE gasket,PTFE bronze gasket,ect.

PTFE Graphite-filled Gasket:PTFE(teflon) graphite-filled is synthetic material made of PTFE and grapphite.It has perfect compressibility,recovery and sealing capability.Compared with traditional PTFE,it improve the low-flow and creep properties.It is more durable than normal PTFE gasket and extend the maintenance period of flange.So PTFE(teflon) graphite is economical choice.

PTFE Glass-filled Gasket:It is stamps gaskets from virgin and glass-filled PTFE.PTFE glass-filled gasket resist virtually all acids and caustics;It has the lowest known coefficient of friction of any solid, and has excellent electrical insulating properties. It has a continuous service temperature range of minus 350F to 500F. It is the ideal material for use in the petrochemical and chemical processing industries, and because it is FDA compliant, it can be used in the food processing and pharmaceutical industries also.

It have a shrinkage rate of approximately 5%. Glass filled PTFE gaskets have a lower shrink rate, because the glass fiber filler makes them harder, so they require less compression to seal adequately.

Main Specification：

Consulted Dimension:

No. Type Standard Type Standard 1 RF 10A Φ53×Φ18×3t FF 10A Φ90×Φ18×3t 2 RF 15A Φ58×Φ22×3t FF 15A Φ95×Φ22×3t 3 RF 20A Φ63×Φ28×3t FF 20A Φ100×Φ28×3t 4 RF 25A Φ74×Φ35×3t FF 25A Φ125×Φ35×3t 5 RF 32A Φ84×Φ43×3t FF 32A Φ135×Φ43×3t 6 RF 40A Φ89×Φ49×3t FF 40A Φ140×Φ49×3t 7 RF 50A Φ104×Φ61×3t FF 50A Φ155×Φ61×3t 8 RF 65A Φ124×Φ77×3t FF 65A Φ175×Φ77×3t 9 RF 80A Φ134×Φ90×3t FF 80A Φ185×Φ90×3t 10 RF 90A Φ144×Φ102×3t FF 90A Φ195×Φ102×3t 11 RF 100A Φ159×Φ115×3t FF 100A Φ210×Φ115×3t 12 RF 125A Φ190×Φ141×3t FF 125A Φ250×Φ141×3t 13 RF 150A Φ220×Φ167×3t FF 150A Φ280×Φ167×3t 14 RF 200A Φ270×Φ218×3t FF 175A Φ305×Φ192×3t 15 RF 225A Φ290×Φ244×3t FF 200A Φ330×Φ218×3t 16 RF 250A Φ333×Φ270×3t FF 250A Φ400×Φ270×3t 17 RF 300A Φ378×Φ321×3t FF 300A Φ445×Φ321×3t 18 RF 350A Φ423×Φ359×3t FF 350A Φ490×Φ359×3t 19 RF 400A Φ486×Φ410×3t FF 400A Φ560×Φ410×3t 20 RF 450A Φ541×Φ460×3t FF 450A Φ620×Φ460×3t 21 RF 500A Φ596×Φ513×3t FF 500A Φ675×Φ513×3t 22 RF 600A Φ700×Φ615×3t FF 550A Φ745×Φ564×3t

　

Warning: Gasket materials should never be recommended when both the temperature and the pressure are at the maximums listed.  Properties and applications shown are typical.  No application should be undertaken by anyone without independent study and evaluation for suitability. Never use more than one gasket in one flange joint, and never reuse a gasket.  Improper use or gasket selection could cause property damage and/or serious personal injury.  The data reported is a compilation of field testing, field service reports and/or in-house testing.  While the utmost care has gone into publishing the information contained herein, we assume no responsibility for errors.  The information and specifications  contained in this website are subject to change without notice. This revision cancels and obsoletes all previous editions.
