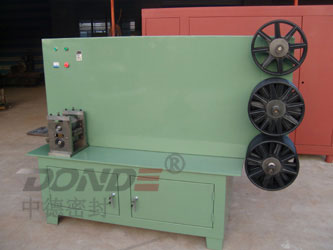

Metal Tape Cutter

Item No.:ZD-M50

Description:Metal strip machine it is a simple, efficient metal belt slitting machine. Able width of less than 120MM, thickness 0.1 - 0.3MM metal band is divided into the width you need. By variable frequency control gear motor drive Tailor-made winding disk striping work quite easily. Stand-alone daily output can reach more than 1000 kg. When combined with PX2000B spiral wound gasket strip molding machine, then make the stainless steel strip processing more efficient. Specially designed cutting blade: first cylindrical grinding, you can continuously 0.2MM stainless steel 8000 --- 10000KG.

Select the configuration:
            1.The random distribution of one set of slitting blade
               assembly.(3.6 4.8 5.0 8.010.0MM) customer demand
            2.Random distribution of the winding plate 50.
            3.Other special specifications blade can be customized

Technical Parameter:

Sub-section thickness	0.1--0.3mm
Slitting Width	≤120mm
Total Power	2.2kw
Motor Power	1.5kw
Inverter controller	4.0G
Voltage	380V/220VOptional
Line speed	0-0.4cm/s
Dimension	2050*800*1550mm
Weight	500kg
