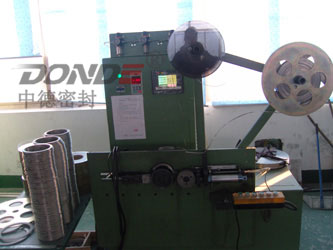

Semi-automatic Winding Machine
Item No:ZD-M500
Description:It
is a vertical semi-automatic winding machine, just feed
metal strip and filler material to produce spiral wound
gasket with inner ring or without inner ring. Setting
product quantity, revolutions and size etc. simply by touch
screen interface, which insure the repeatability of quality.
Option:
1.V or W profile, thk 3.2mm 4.5mm 6.4mm 7.2mm
2.Including molds of ASME 2”-10” 150LBS with
inner ring and without inner ring
(Normal for ASME B16.20,
from 2” to 18”, other standard on request)
Molds of other standard or
customized size are available on request
Technical Parameter:
|
Gasket Size
|
2”-18” with inner ring / without inner ring
|
|
Nominal Thickness
|
4.5mm
|
|
Maximum Outer Diameter
|
500mm
|
|
Minimum Inner Diameter
|
50mm
|
|
Repeatability of Outer Diameter
|
±0.2mm
|
|
Rotational Speed
|
0 – 200 rpm
|
|
Total Power
|
8 KW
|
|
Motor Power
|
1.5 KW
|
|
Welding Power
|
6 KW
|
|
Voltage
|
380V/220V
|
|
Air Pressure
|
6-8 BAR
|
|
Variable Frequency Controller
|
2.2G
|
|
PLC
|
XINJIE
|
|
Dimension
|
1400*1050*1650mm
|
|
Weight
|
480 KG
|
