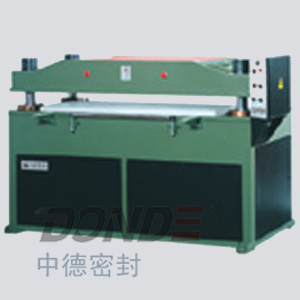

Plane and four-columns gasket cutting press

Item No.:ZD-GM10

Description:for cutting big size gasket

Plane and four-columns gasket cutting press
FEATURES:
The machine adopts the mechanism of double-cylinder and four-columns balanceable connected staffs,that ensure the be-cutted places indentical, it is fit to cut all the big-surface-areas material just like non-metal and semimetal gasket sheet

Model	ZD-GM10-25T	ZD-GM10-40T	ZD-GM10-60T
Pressure	25T	40T	60T
Stroke	45-150mm	50-150mm	50-150mm
Working area	500×1600mm	700×1650mm	900×1750mm
Power	3HP	4HP	5HP
N.W.	1700kg	3200kg	3200kg
Dimension（L×W×H）	2300×800×1380mm	2400×1100×1400mm	2500×1400×1420mm
