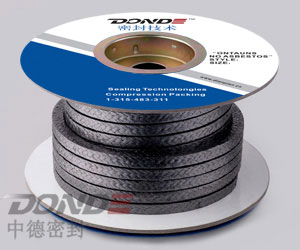

Graphite Fibre Packing Impregnated PTFE

Item No.:ZD-P1107

Description:Graphite braided packing impregnated with PTFE latex is made from expanded graphite fiber impregnated with mixed PTFE latex and inert lubricant.This kind of graphite packing has better resist cautery capability and effective heat exchange capability.Graphite impregnated PTFE packing has perfect self-lubrication.It is widely used in sealing pump shaft.Graphite impregnated PTFE packing can also be used in sealing water,steam,solvents for agitators,mixers,autoclaves and centrifugal pumps ect.

Main Specification:

Temperature

Up to 280℃

Pressure

30MPa

PH range

0-14

Linear speed

20M/S

Size

3*3mm-60*60mm(or as request)

Parameter:
Note: 3X3 is twisting instead of weaving.

Cross-section area
(mm)

Density
(g/cm3)

g/m

Cross-section area
(mm)

Density
(g/cm3)

g/m

3X3

1.25~1.30

12

8X8

1.15~1.25

97

4X4

1.25~1.30

21

9.5X9.5

1.15~1.25

108

4.7X4.7

1.25~1.30

31

10X10

1.15~1.25

120

5X5

1.25~1.30

32

11X11

1.15~1.25

145

6X6

1.25~1.30

45

12X12

1.15~1.25

172

6.5X6.5

1.25~1.30

53

12.5X12.5

1.15~1.25

194

7X7

1.25~1.30

82

14X14

1.15~1.25

235

15X15

1.15~1.25

270

24X24

1.0~1.10

615

16X16

1.10~1.20

294

25X25

1.0~1.10

677

17.4X17.4

1.10~1.20

348

28X28

1.0~1.10

823

18X18

1.10~1.20

373

30X30

1.05~1.10

945

19X19

1.05~1.15

397

32X32

1.05~1.10

1075

20X20

1.05~1.15

440

35X35

1.00~1.05

1255

22X22

1.05~1.15

532

40X40

0.95~1.05

1600

How to Order:

Item

Order Code

Cotton fibre reinforced graphite packing

ZD-P1100

Glass fibre reiforced graphite packing

ZD-P1101

Stainless steel wire reinforced graphite packing

ZD-P1102

Nickel wire reinforced graphite packing

ZD-P1103

Inconnel wire reinforced graphite packing

ZD-P1104

Innconel mesh jacket graphite packing

ZD-P1105

High strength graphite packing for  temperature and high pressure

ZD-P1106

PTFE impregnated graphite packing

ZD-P1107

No ignition loss graphite packing ZD-P1108
Expanded graphite packing with carbon fiber corners ZD-P1109

For more information,please contact with us directly,thanks!
